SOLAR MPPT PCU : ROVER 6072 -72V HV

The Ultimate Solar Power Solution: Engineered for efficiency, reliability, and energy independence, the ROVER-HV-6000-72V seamlessly integrates advanced MPPT technology, a high-efficiency pure sine wave inverter, and a powerful grid charger to deliver uninterrupted, cost-effective, and eco-friendly power. With a 4800W capacity, it supports a wide range of home and office appliances while optimizing solar utilization with smart energy management. Whether for grid-independent operation or backup power, this premium Solar MPPT PCU ensures maximum performance, reduced energy costs, and sustainable power for years to come.

Key Features

• Pure Copper Transformer with high grade Lamination
• 0.8 Constant Output Power Factor (6000VA = 4800W Max. O/P load)
• PV Panel Voc Capacity up to 230V
• PV Panel Load : 6000Wp if Voc < 230V
• Zero Grid Power Consumption on Idle Stage
• No Load DC Current < 0.7A + - 0.3A
• User Configurable Grid Charging Current up to 20 A
• 70 Micron High Grade PCB
• Customer Control Over Grid Charging ON/OFF
• Best In Class External Surge/Lightning Protection
• Battery Grid Charging even at Low Grid Voltage
• Compatible to All Types of Batteries including LiFePO4 with BMS
• Unique ZMPT Based isolated Grid Sensing to reduce lightning hazards
• Forced Grid to Solar Mode Shifting Facility
• Constant noise free DSP Pure Sine Wave Output
• Soft Front Panel all Function Control Switches - No Rocker Switches behind the Device

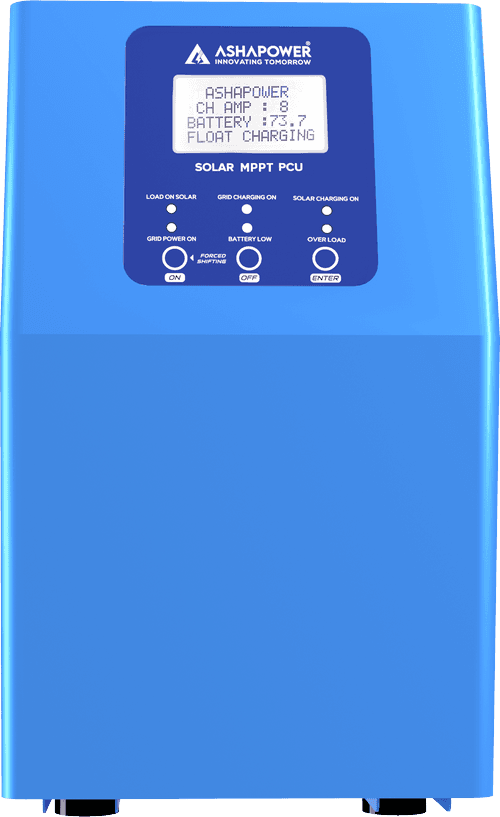

• Large 4 Line Multifunctional LCD Front Panel display
• User configurable solar priority and grid priority charging modes
• Intelligent true multi stage smart solar and grid charging (Bulk, Absorption, Float)
• High over load and surge load handling capacity
• Unbeatable MPPT Tracking Efficiency up to 98.9%
• MCB Short Circuit Protection for Grid Power
• Blade Fuse Protection for Internal Components
• Over Load, Surge and Short Circuit Protection
