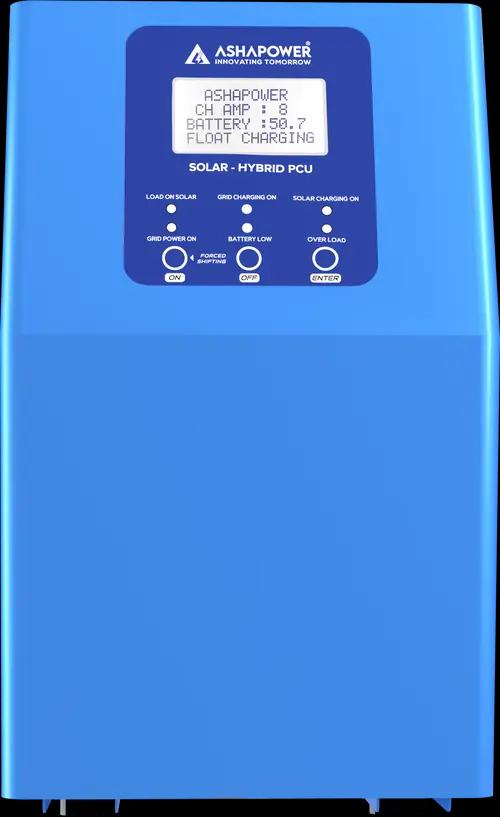

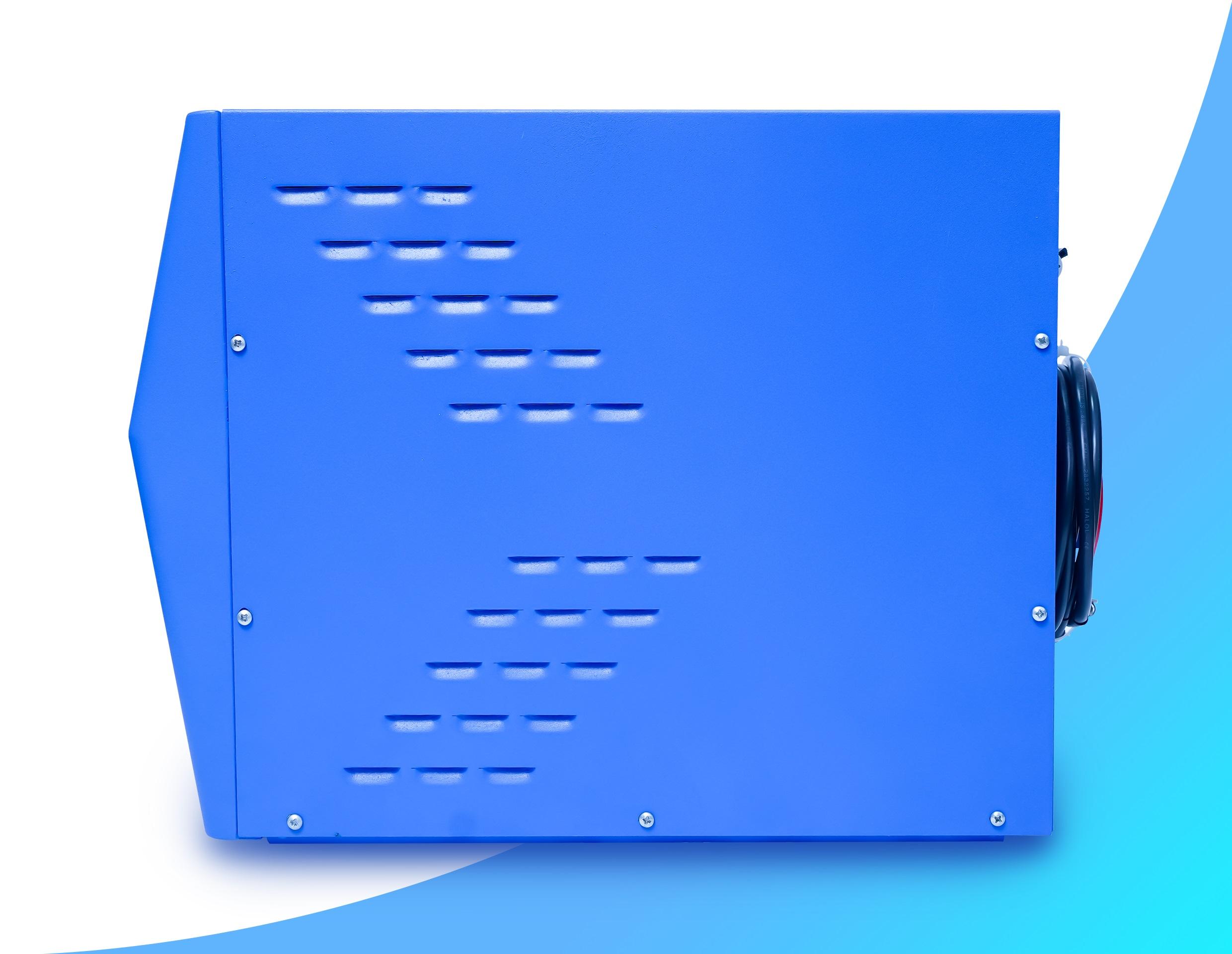

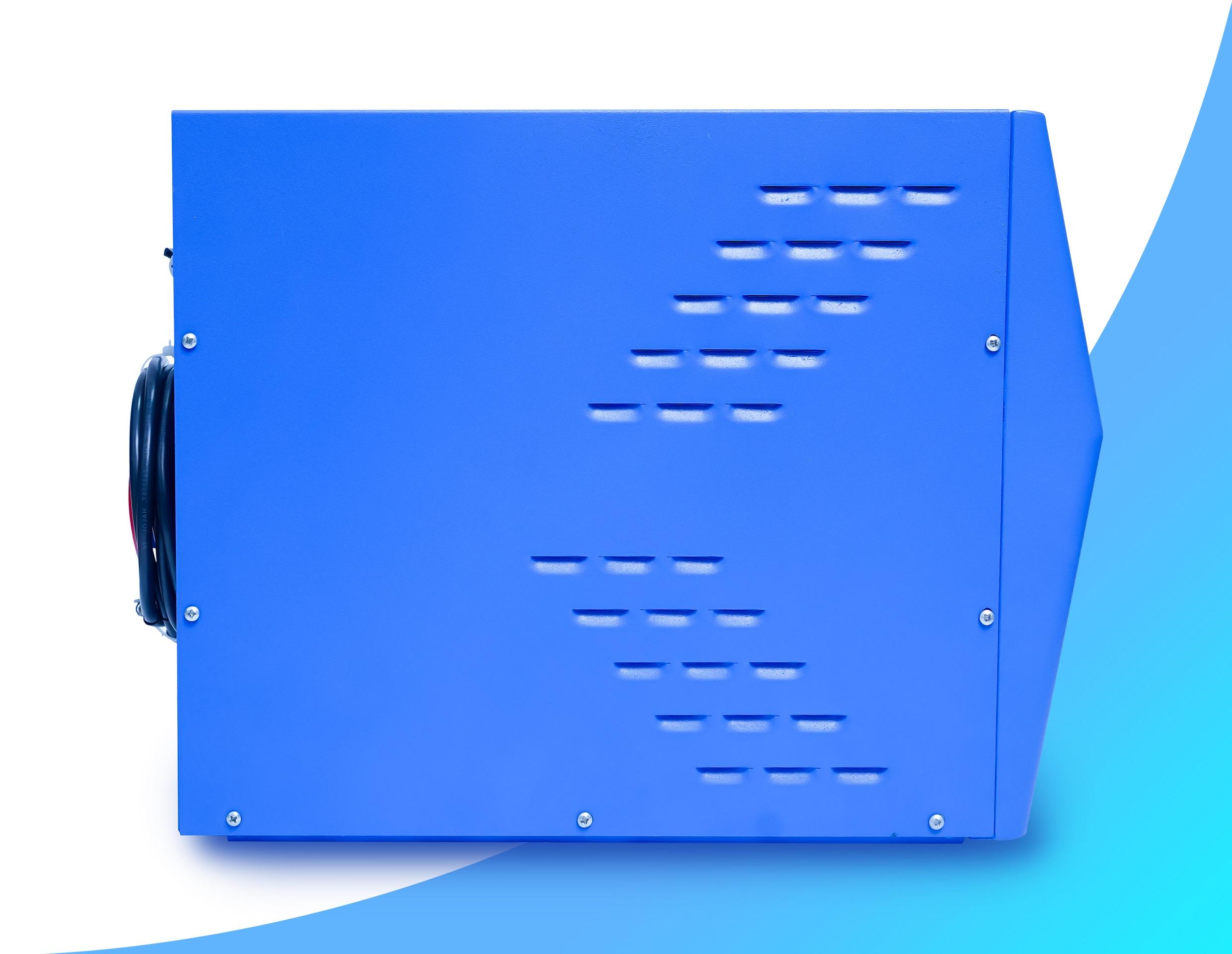

SOLAR MPPT PCU : ROVER 5248 - 48V

ASHAPOWER SOLAR MPPT PCU ROVER-HV-5200- 48V is a Premium quality high power Solar energy extractor for your Home/Office having a connected load of 4160Watts. It can be loaded with Air conditioner, Induction cooker, Fans, LED lights, Computer, LED TV, Washing machine, Laser printer, Refrigerator, Iron box, and an Induction motor pump when used with 5500 watts Solar PV panels and 48V / 200Ah batteries. The integration of an efficient MPPT SCC (230Voc/80AMP/5.5kwp), 48V/4160W pure sine wave inverter, powerful grid charger and high performance with low energy consumption makes it unique in its class.

Key Features

• Pure Copper Transformer with high grade Lamination
• 0.8 Constant Output Power Factor (5200VA = 4160W Max. O/P load)
• PV Panel Voc Capacity up to 230V
• PV Panel Load : 5500Wp if Voc < 230V
• Zero Grid Power Consumption on Idle Stage
• No Load DC Current < 0.7A + - 0.3A
• User Configurable Grid Charging Current up to 20 A
• 70 Micron High Grade PCB
• Customer Control Over Grid Charging ON/OFF
• Best In Class External Surge/Lightning Protection
• Battery Grid Charging even at Low Grid Voltage
• Compatible to All Types of Batteries including LiFePO4 with BMS
• Unique ZMPT Based isolated Grid Sensing to reduce lightning hazards
• Forced Grid to Solar Mode Shifting Facility
• Constant noise free DSP Pure Sine Wave Output
• Soft Front Panel all Function Control Switches - No Rocker Switches behind the Device
• Large 4 Line Multifunctional LCD Front Panel display
• User configurable solar priority and grid priority charging modes
• Intelligent true multi stage smart solar and grid charging (Bulk, Absorption, Float)
• High over load and surge load handling capacity
• Unbeatable MPPT Tracking Efficiency up to 98.9%
• MCB Short Circuit Protection for Grid Power
• Blade Fuse Protection for Internal Components
• Over Load, Surge and Short Circuit Protection
