SOLAR MPPT PCU : ROVER 3024 - 24V

ASHAPOWER SOLAR MPPT PCU - ROVER-3000-24V is a Premium Quality High Power Solar energy extractor for your home / office having a connected load of 2400Watts.It can be loaded with Fan, LED lights, Iron box, induction cooker, Inverter AC, Computer, LED TV, Washing machine , Refrigerator, Laser printer, and an Induction motor pump when used with 3500 watts solar PV panels and 24V / 200Ah batteries. The integration of a highly efficient MPPT SCC (110 Voc / 80 AMP / 3500 Wp), 2400W DSP pure sine wave inverter, high power grid charger and the low energy consumption makes it unique in its class.

Key Features

• High Grade CRGO Laminated Pure Copper Transformer
• 0.8 Constant Output Power Factor 3000VA = 2400W Max. O/P load)
• No Load DC Current < 0.7A + - 0.3A
• User configurable solar priority and grid priority charging modes
• Customer control over grid charging ON/OFF

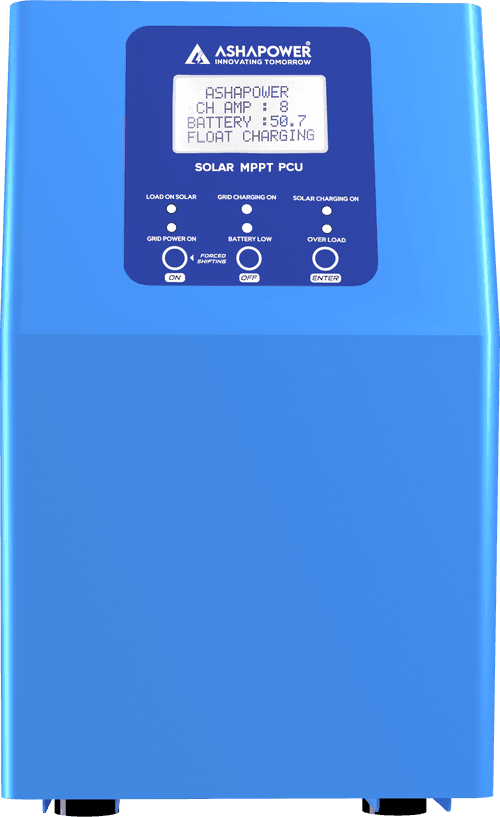

• Large 4 Line multifunctional LCD front panel display
• Soft front panel all function control switches. No Rocker switches behind the device
• PV Panel load 3500Wp if Voc 110V / 3500Wp
• Intelligent true multi stage smart solar and grid charging (Bulk, Absorption, Float)
• Battery grid charging even at low grid voltage
• High over load and surge load handling capacity
• All type battery compatibility Including LiFePO4 with BMS
• Unique ZMPT based isolated grid sensing to reduce lightning hazards
• Forced grid to solar mode shifting facility
• Zero grid power consumption on Idle Stage
• Constant noise free DSP pure sine wave output
• MCB short circuit protection for grid power
• Blade Fuse protection for Internal Components
• Over load, surge and short circuit protection
