NOVA-50 Vers.7.9

NOVA-50 Vers.7.9


M.R.P. :


In Stock

ASHAPOWER®️ NOVA-50 Solar MPPT Charge Controller can be used for charging 12V and 24V batteries. The device detects and configures the battery bank automatically. It supports all types of solar panels(12V/24V) available in the market like Polycrystalline, Monocrystalline, Mono PERC or Half-Cut Mono PERC, etc. Despite being the starting model, NOVA-50 is loaded with all unique features available on ASHAPOWER®️ Solar MPPT Charge Controllers like Initial Limited Ampere Charging, True 4 Stage Smart Charging (Bulk-Absorption-Float-Equalization), etc. It is compatible for batteries like Lead-acid, VRLA, Gel type, and Lithium battery with good BMS and Active Balancer.

Key Features

  • Compatible for 12V/24V battery bank
  • Auto-detection and self setting of battery bank
  • True 4 stage smart charging for prolonged battery life (Bulk - Absorption - Float - Equalisation)
  • Programmable Initial limited ampere battery charging facility
  • Ultra-fast & efficient Power Point Tracking (98.9%)
  • dsPIC33EP family micro controller based device
  • PV panel reverse polarity protection
  • Automatic disconnection of PV panels at night
  • Over voltage and overload protection from PV panels
  • Protection for battery against hardware failures
  • 15 menu user programmable function settings and in built settings keys

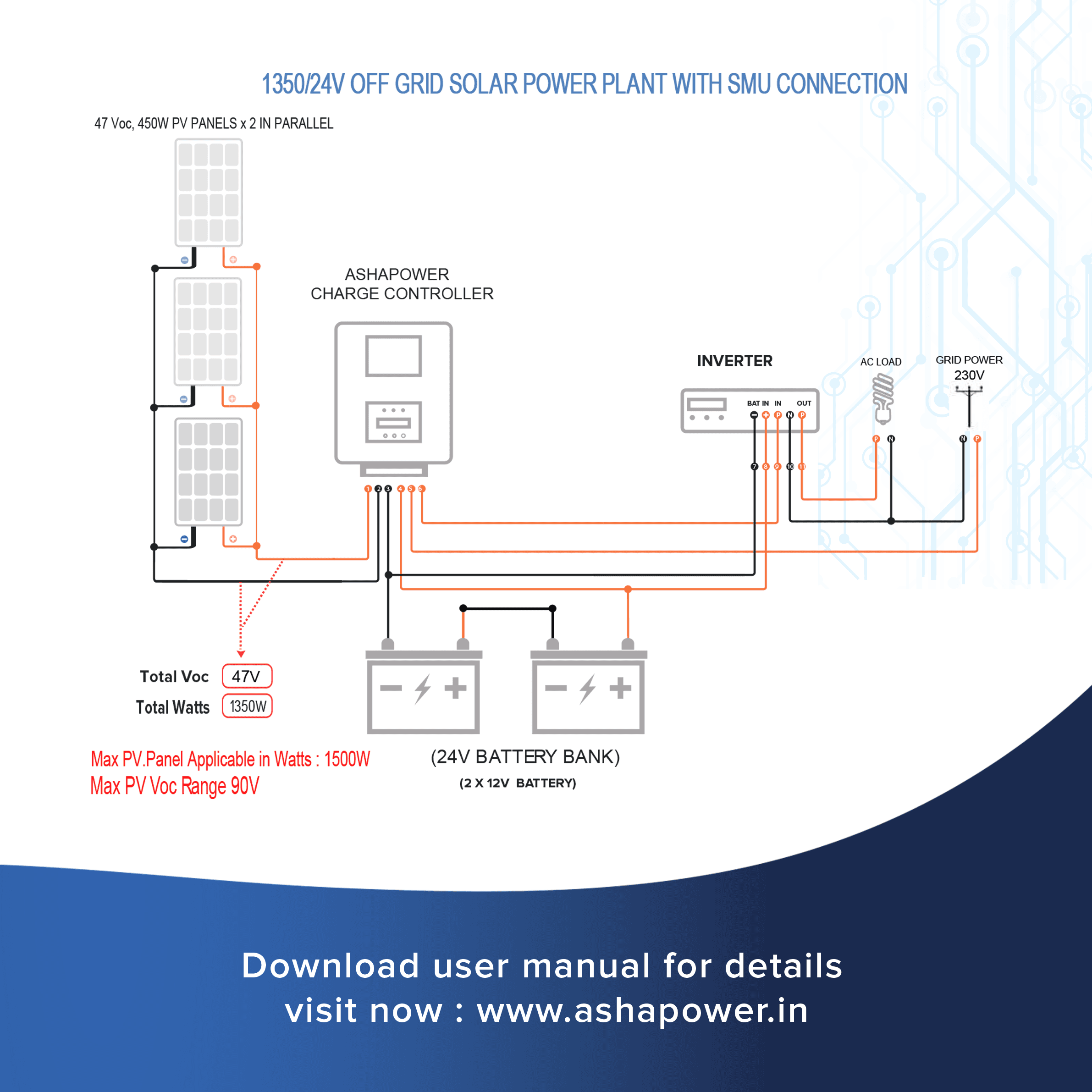

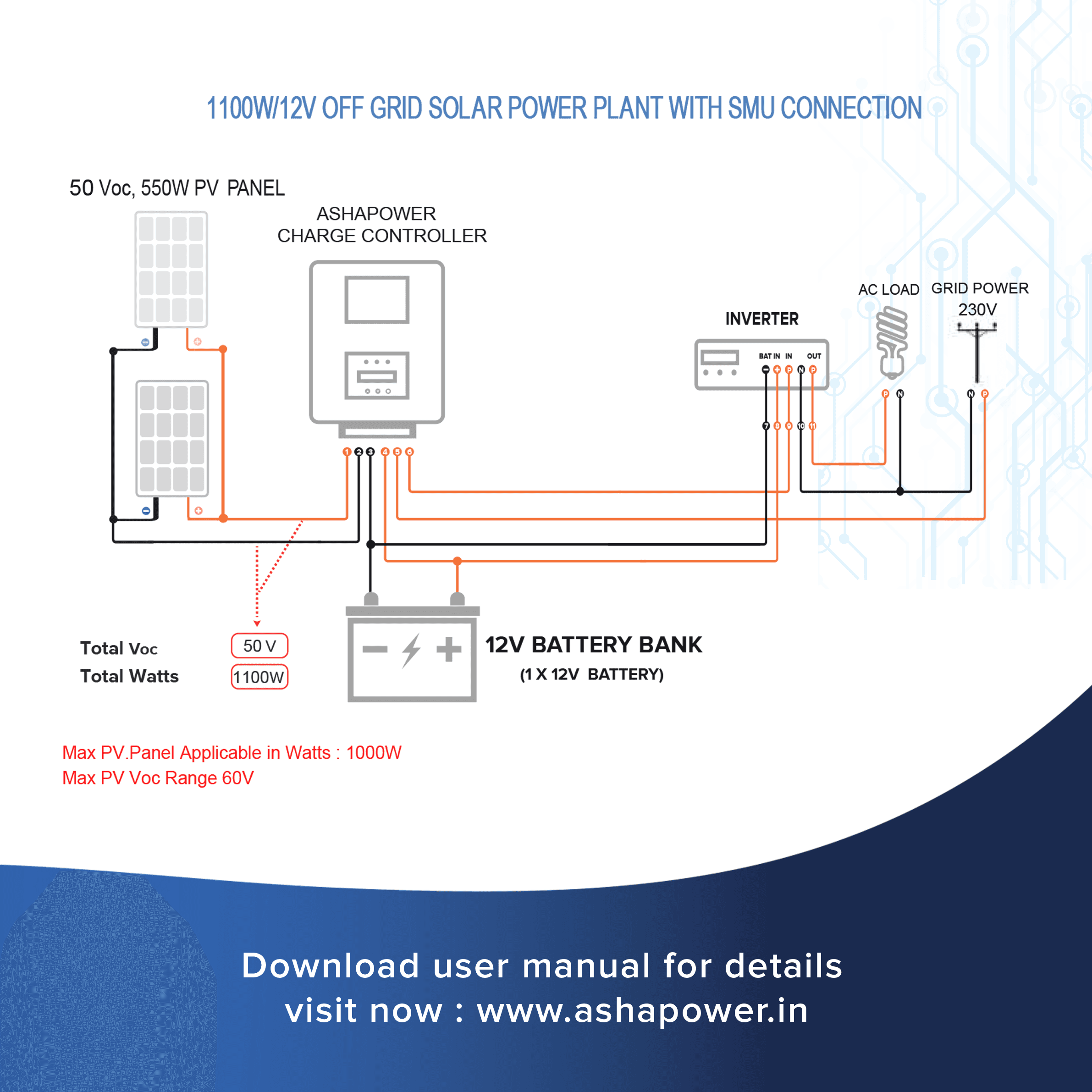

  • Grid power control to the connected inverter (SMU-Solar Management Unit)
  • Forced grid to solar shifting facility
  • Multifunction status display



Max PV Array Open Circuit Voltage (Voc)12V-60Voc/ 24V-90Voc
Max PV Array Watts Applicable12V-900Wp/ 24V-1400Wp


Overload ProtectionYES
Panel Reverse Polarity ProtectionYES
Over Charge ProtectionYES
Battery Reverse Polarity ProtectionOPTIONAL


Net Weight (Kgs)2.3
Display2 x 16 LCD

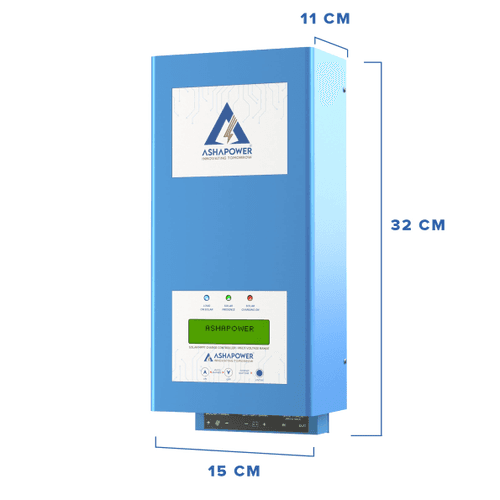

Dimensions - L x W x H (mm)320 x 149 x 102
ConnectorInput/Output Terminal block


Maximum Tracking Efficiency98.9%
Maximum Charging Current50A
Standby Power Consumption<1.5W
Nominal Battery Voltage12V/24V (Self Setting)
