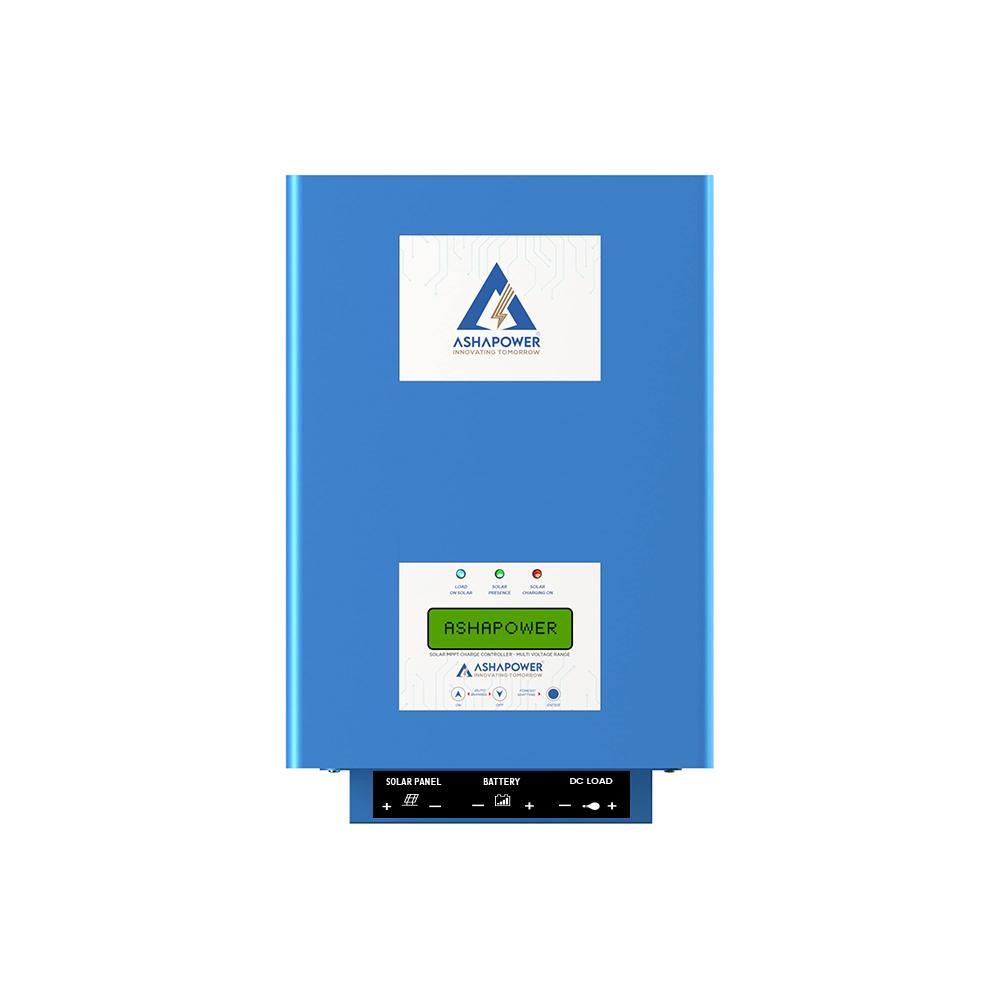

NEON-80-DC-LOAD MPPT CHARGE CONTROLLER Vers.9.1

The ASHAPOWER® NEON-80 (HV) Solar MPPT Charge Controller is designed for charging 12V, 24V, 36V, and 48V batteries. The device automatically detects and configures the battery bank. It supports all types of solar panels (12V/24V), including Polycrystalline, Monocrystalline, Mono PERC, and Half-Cut Mono PERC. With a high PV panel input Voc range, the NEON-80 (HV) allows for more flexible and easier installation by connecting more panels in series. In addition to its advanced features, including Initial Limited Ampere Charging and True 4-Stage Smart Charging (Bulk, Absorption, Float, Equalization), the NEON-80 (HV) also supports DC load functionality, enabling direct connection and powering of DC loads without the need for additional conversion equipment. It is compatible with batteries such as Lead-acid, VRLA, Gel, and Lithium, provided they have a good BMS and Active Balancer.

Key Features

• Delivers ultra-fast and highly efficient Power Point Tracking with a 98.9% success rate.
• True 4-stage smart charging for prolonged battery life (Bulk - Absorption - Float - Equalization)
• Compatible for 12V/24V/36V/48V battery bank
• Auto-detection and self-setting of battery bank
• dsPIC33EP family-based programmable interface controller
• Programmable initial limited ampere battery charging facility
• 25 menu user-programmable function settings and in-built settings keys
• 2-line LCD multifunction status display
• Protection against PV panel overvoltage and overload conditions
• Safeguard against reversed PV panel connections
• Automatic PV panel disconnection during night-time hours
• Prevents battery damage due to internal component failures
• Forced load ON and load OFF functionality
