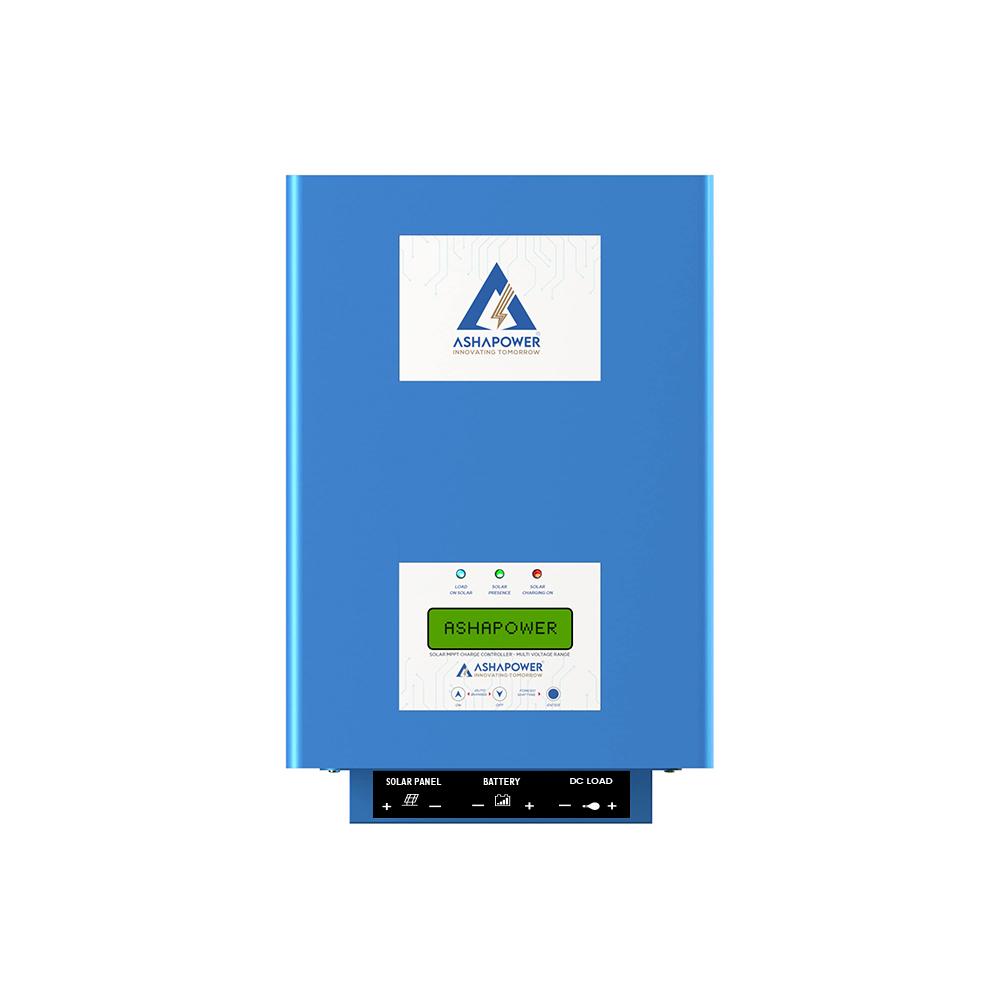

NEON-70-DC-LOAD MPPT CHARGE CONTROLLER Vers.9.1

The ASHAPOWER®️ NEON-70 Solar MPPT Charge Controller is designed to charge 12V, 24V, 36V, and 48V batteries. It automatically detects and configures the battery bank. The controller is compatible with all types of solar panels, such as Polycrystalline, Monocrystalline, Mono PERC, and Half-Cut Mono PERC. The NEON-70 also supports DC load functionality, allowing it to directly power DC loads without requiring additional equipment. This makes it a convenient and efficient solution for various solar energy applications.

Key Features

• Delivers ultra-fast and highly efficient Power Point Tracking with a 98.9% success rate.
• True 4-stage smart charging for prolonged battery life (Bulk - Absorption - Float - Equalization)
• Compatible for 12V/24V/36V/48V battery bank
• Auto-detection and self-setting of battery bank
• dsPIC33EP family-based programmable interface controller
• Programmable initial limited ampere battery charging facility
• 25 menu user-programmable function settings and in-built settings keys
• 2-line LCD multifunction status display
• Protection against PV panel overvoltage and overload conditions
• Safeguard against reversed PV panel connections
• Automatic PV panel disconnection during night-time hours
• Prevents battery damage due to internal component failures
• Forced load ON and load OFF functionality
