NEON-70 Vers.9.0

NEON-70 Vers.9.0

-13%₹14,699.00

M.R.P. :

₹16,896.00

In Stock

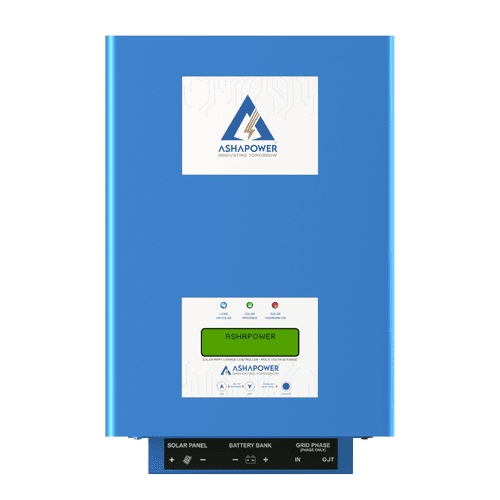

ASHAPOWER®️ NEON-70 Solar MPPT Charge Controller can be used for charging 12V,24V,36V and 48V batteries. The device detects and configures the battery bank automatically. It supports all types of solar panels(12V/24V) available in the market like Polycrystalline, Monocrystalline, Mono PERC or Half-Cut Mono PERC, etc. Despite being the starting model, NEON-70 is loaded with all unique features available on ASHAPOWER®️ Solar MPPT Charge Controllers like Initial Limited Ampere Charging, True 4 Stage Smart Charging (Bulk-Absorption-Float-Equalization), etc. It is compatible for batteries like Lead-acid, VRLA, Gel type, and Lithium battery with good BMS and Active Balancer.

Key Features

  • Compatible for 12V/24V/36V/48V battery bank
  • Auto-detection and self setting of battery bank
  • 4 stage smart charging for prolonged battery life (Bulk-Absorption-Float-Equalization)
  • Programmable Initial limited ampere battery charging facility
  • Ultra-fast & efficient power point tracking(98.9%)
  • dsPIC33EP family micro controller based devices
  • PV panel reverse polarity protection
  • Over voltage and overload protection from PV panels
  • Protection for battery against hardware failures
  • 15 menu user programmable function settings and inbuilt settings keys
  • Grid power control to the connected inverter (SMU-Solar Management Unit)
  • Forced grid to solar shifting facility
  • Multifunction status display

Specifications

OUTPUT

Nominal Battery Voltage12V/24V/36V/48 (Self Setting)
Maximum Tracking Efficiency98.9%
Maximum Charging Current70A
Standby Power Consumption<1.5W

PV INPUT

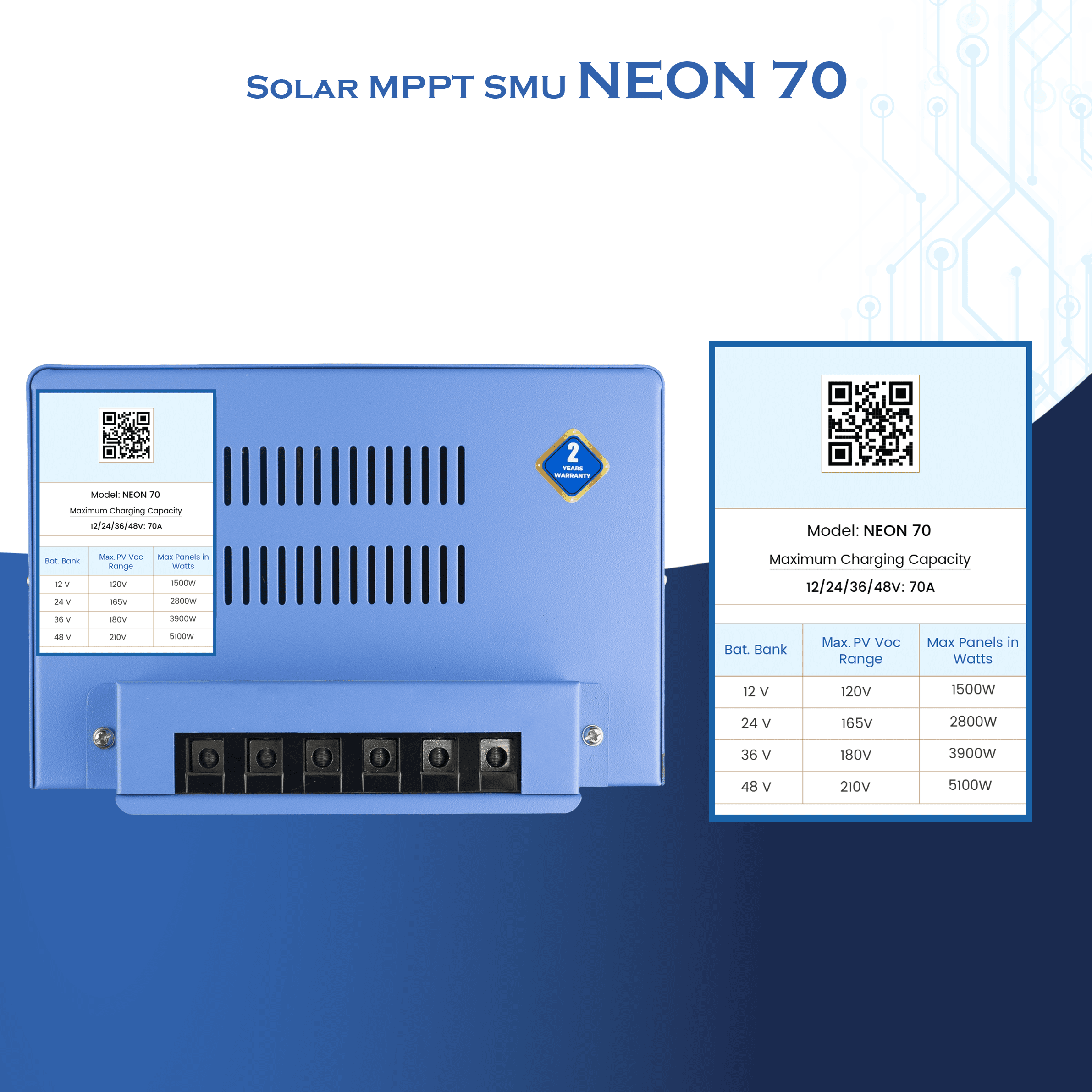

Max PV Array Open Circuit Voltage (Voc)12V: Voc-120V/24V : Voc-165V/36V : Voc-180V/48V : Voc-210V
Max PV Array Watts Applicable12V-1200Wp/ 24V-2000Wp/36V-3000Wp/48V-4500Wp

SPECIAL FEATURES

Overload ProtectionYES
Panel Reverse Polarity ProtectionYES
Over Charge ProtectionYES
Battery Reverse Polarity ProtectionOPTIONAL

PHYSICAL

Display2 x 16 LCD
Dimensions - L x W x H (mm)410 x 280 x 220
ConnectorInput/Output/Terminal block
Net Weight (Kgs)4.4

Downloads

NEON-70 Vers.9.0

14.3 MB
