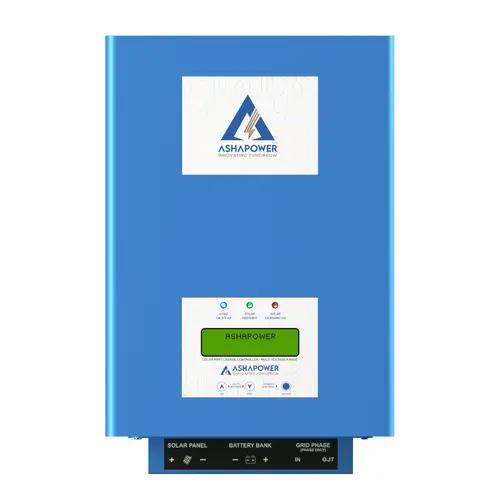

HERCULES-60 Vers.9.0

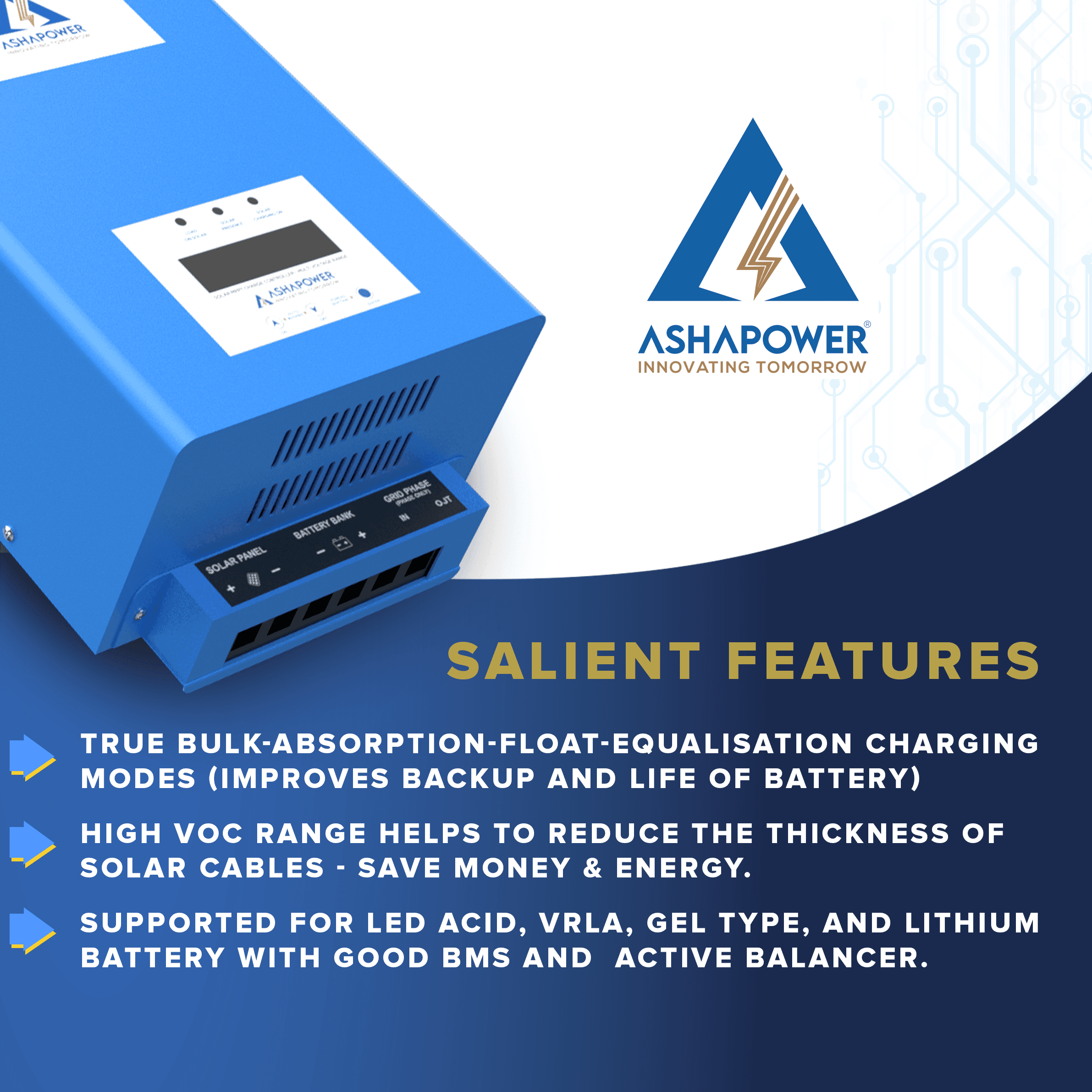

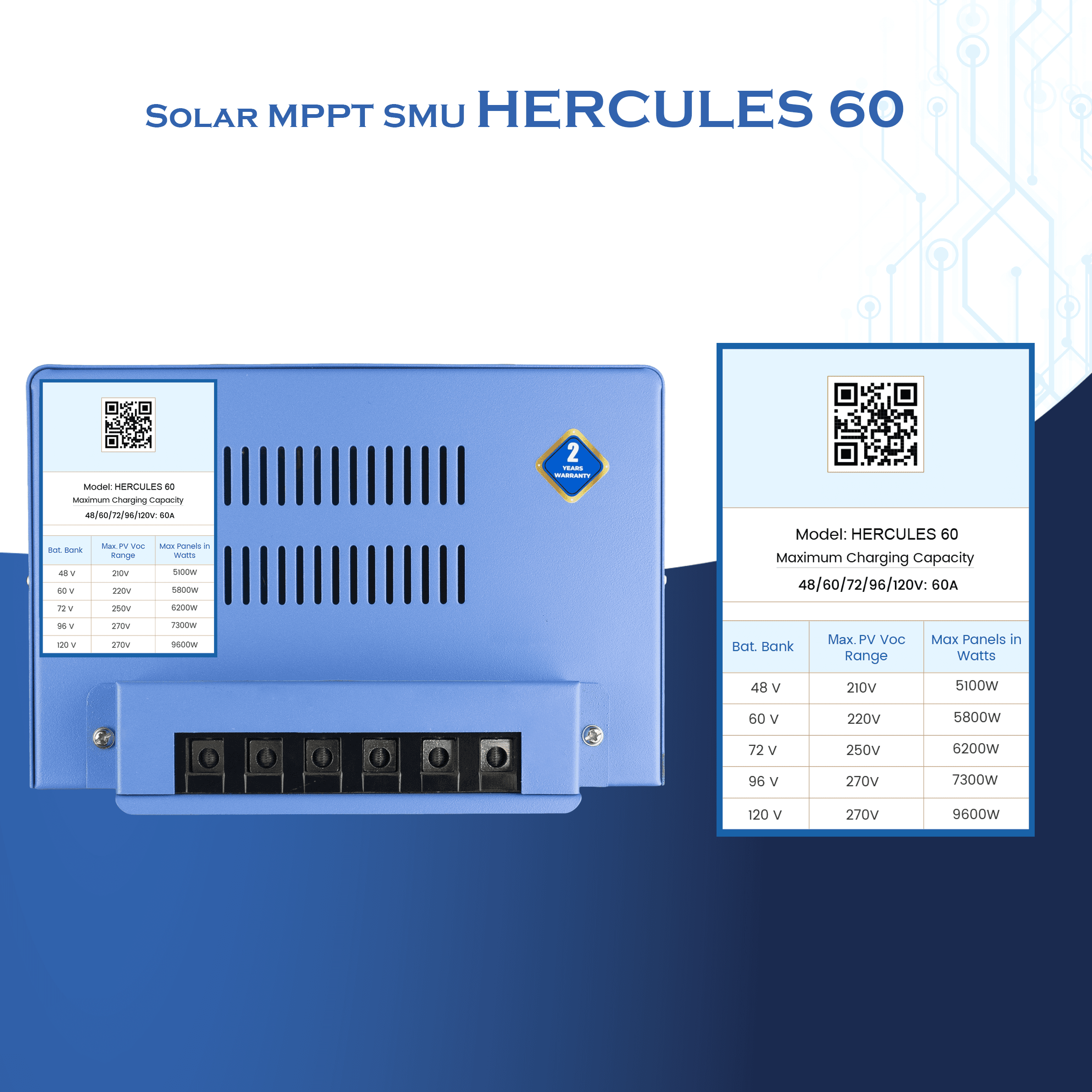

ASHAPOWER® HERCULES-60 Solar MPPT Charge Controller can be used for charging 48V, 60V, 72V, 96V & 120V batteries. The device detects and configures the battery bank automatically. It supports all types of solar panels(12V/24V) available in the market like Polycrystalline, Monocrystalline, Mono PERC or Half-Cut Mono PERC, etc. The high PV panel input Voc range will help you to connect more panels in series to make the installation easy and flexible. HERCULES-60 is loaded with all unique features available on ASHAPOWER® Solar MPPT Charge Controllers like Initial Limited Ampere Charging, True 4 Stage Smart Charging (Bulk- Absorption- Float Equalization), etc. It is supported for batteries like Lead-acid, VRLA, Gel type, and Lithium battery with good BMS and Active Balancer.

Key Features

• Compatible for 48V/60V/72V/96V/120V battery bank
• Auto-detection and self setting of battery bank
• 4 stage smart charging for prolonged battery life (Bulk-Absorption-Float-Equalization)
• Programmable Initial limited ampere battery charging facility
• Ultra-fast & efficient power point tracking(98.9%)
• dsPIC33EP family micro controller based devices
• PV panel reverse polarity protection
• Automatic disconnection of PV panels at night
• Over voltage and overload protection from PV panels
• Protection for battery against hardware failures

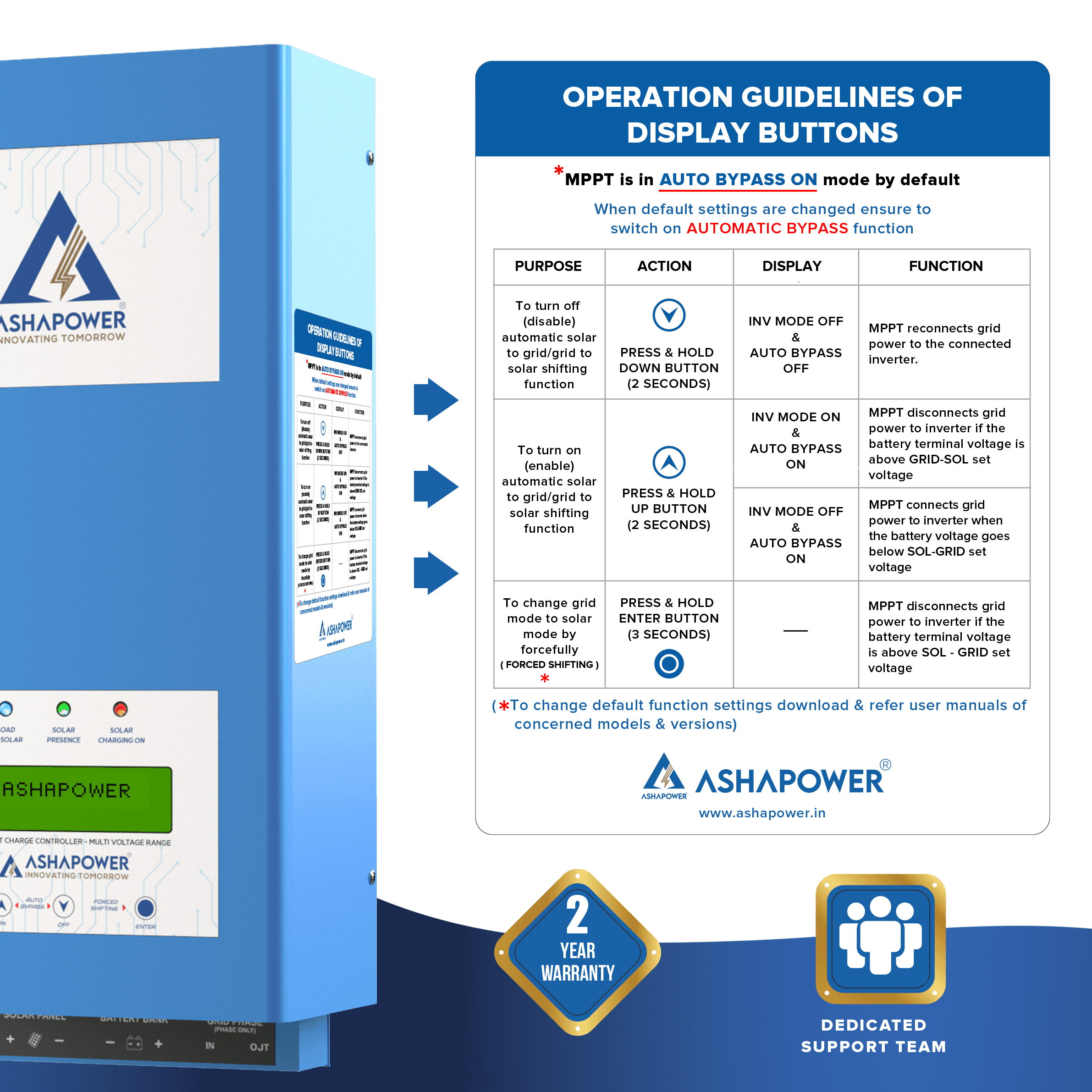

• 15 menu user programmable function settings and inbuilt settings keys
• Grid power control to the connected inverter (SMU-Solar Management Unit)
• Forced grid to solar shifting facility
• Multifunction status display
