HOME UPS LANDER 6072 - 72V

HOME UPS LANDER 6072 - 72V

-12%₹48,500.00

M.R.P. :

₹55,500.00

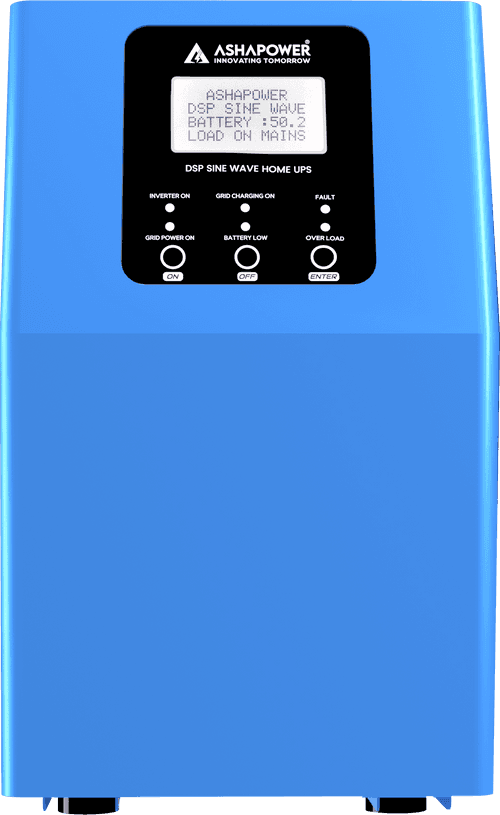

The ASHAPOWER HOME UPS - LANDER-6000-72V is a premium, high-power UPS/Inverter solution engineered for exceptional performance and efficiency in homes and offices. With a robust connected load capacity of 4800W, it seamlessly powers essential appliances when paired with 72V x 200Ah batteries. Key features include a pure copper transformer, advanced Smart DSP sine wave technology, high-performance capabilities, and intuitive user-friendly control. Further more, it can be easily upgraded to a solar inverter using the ASHAPOWER Solar MPPT Charge Controller (SMU). The ASHAPOWER LANDER-6000-72V provides uninterrupted, efficient, and cost-effective power, making it an ideal solution for home and office energy needs.

Key Features

  • Pure Copper Transformer with High Grade Lamination
  • 70 Micron High Grade PCB
  • Customer control over AC mains (grid) charging ON/OFF
  • Soft front panel all function control switches. No Rocker Switches behind the Device
  • Intelligent multi stage smart charging (Bulk, Absorption, Float)
  • Battery charges even at low grid voltage
  • Self controlled grid to solar/solar to grid changeover facility
  • Forced grid to solar mode shifting facility
  • High over load and surge load handling capacity
  • Different type battery compatibility including LiFePO4 with BMS
  • Unique ZMPT based isolated grid power sensing to reduce lightning hazards
  • Zero grid power consumption on Idle Stage
  • MCB short circuit protection for grid power
  • Blade Fuse Protection for Internal Components
  • Over load , surge and short circuit protection
  • DSP pure sine wave constant noise free output
  • Large 4 Line multifunctional LCD front panel display

Specifications

SPECIAL FEATURES

Over Charge ProtectionYES
Standby grid Power ConsumptionZero at idle stage
Battery Reverse Polarity ProtectionOPTIONAL

OUTPUT

Nominal Battery Voltage72 V DC
No load battery Power Consumption1AMP + - 0.3
Maximum grid battery charging current4 AMP TO 20 AMP
Humidity0 to 90% RH (No dew)
Operating temperature- 20 degree to 65 degree C
Storage temperature- 30 degree to 80 degree C

PHYSICAL

Display4 line LC Display
Connectors6 Way Input / Output Terminal block
Net Weight (Kgs) / Gross Weight (Kgs41.0 / 43.5
Dimensions – L x W x H (cm)47.7 x 25.3 x 39.2

Downloads

DSP SINE WAVE HOME UPS LANDER 6072

275.2 KB
