HOME UPS LANDER 3036 - 36V

HOME UPS LANDER 3036 - 36V

-11%₹27,500.00

M.R.P. :

₹31,200.00

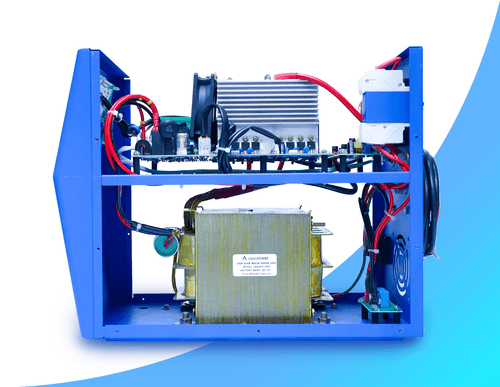

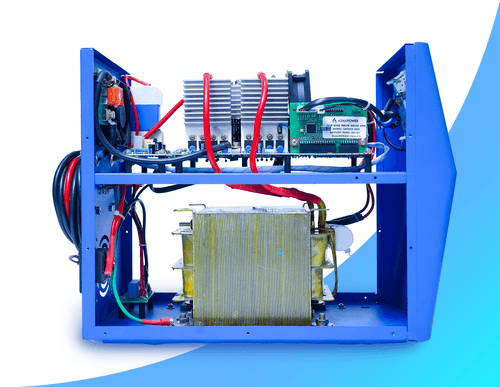

ASHAPOWER HOME UPS - LANDER 3000 - 36V is a premium quality high power INVERTER / UPS for your home / office, having a connected load of 2400W. It can be loaded with Fans, LED lights, Iron box, normal Washing machine, Refrigerator, TV, Computer, Laser printer, and a low watts induction motor pump, when used with 36V X 200 Ah batteries. It can be easily converted to a solar inverter using ASHAPOWER Solar MPPT Charge controller (SMU). A highly Efficient Pure Copper Transformer with high grade lamination, Smart DSP sine wave inverter technology, high performance with low energy consumption and easy customer control over system functions makes it unique in its class.

Key Features

  • Pure Copper Transformer with High Grade Lamination
  • 70 Micron High Grade PCB
  • Customer control over AC mains (grid) charging ON/OFF
  • Soft front panel all function control switches. No Rocker switches behind the Device
  • Intelligent multi stage smart charging (Bulk, Absorption, Float)
  • Battery charges even at low grid voltage
  • Self controlled grid to solar/solar to grid changeover facility
  • Forced grid to solar mode shifting facility
  • Different type battery compatibility including LiFePO4 with BMS
  • Unique ZMPT based isolated grid power sensing to reduce lightning hazards
  • Zero grid power consumption on Idle Stage
  • MCB short circuit protection for grid power
  • Blade Fuse Protection for Internal Components
  • Over load , Surge and Short Circuit Protection
  • DSP pure sine wave constant noise free output

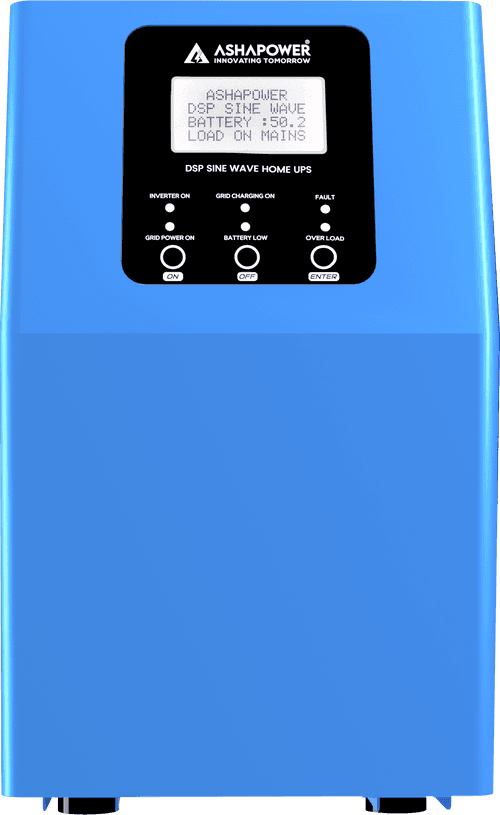

  • Large 4 Line multifunctional LCD front panel display
  • High over load and surge load handling capacity

Specifications

OUTPUT

Nominal Battery Voltage36 V DC
No load battery Power Consumption1AMP + -0.3
Maximum grid battery charging current4 AMP TO 20 AMP
Humidity0 to 90% RH (No dew)
Operating temperature- 20 degree to 65 degree C
Storage temperature- 30 degree to 80 degree C

PHYSICAL

Display4 line LC Display
Connectors4 Way Input / Output Terminal block
Net Weight (Kgs) / Gross Weight (Kgs26.5 Kgs / 28.5 Kg
Dimensions – L x W x H (cm)44.0 x 19.7 x 33.2

SPECIAL FEATURES

Battery Reverse Polarity ProtectionOPTIONAL
Over Charge ProtectionYES
Standby grid Power ConsumptionZero at idle stage

Downloads

36V- HOME UPS LANDER-3000-36V.pdf

4.6 MB
