144V-50A (520Voc)

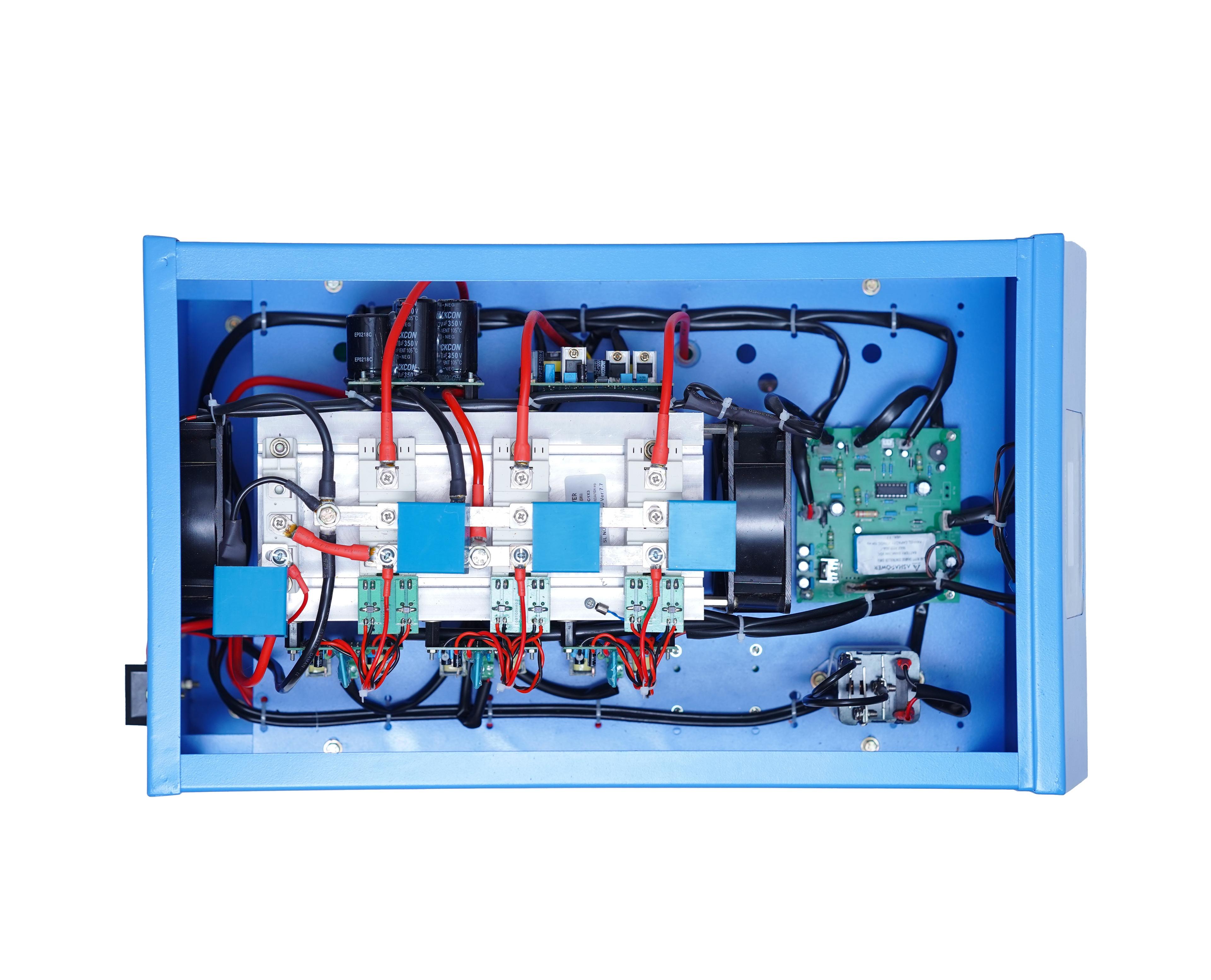

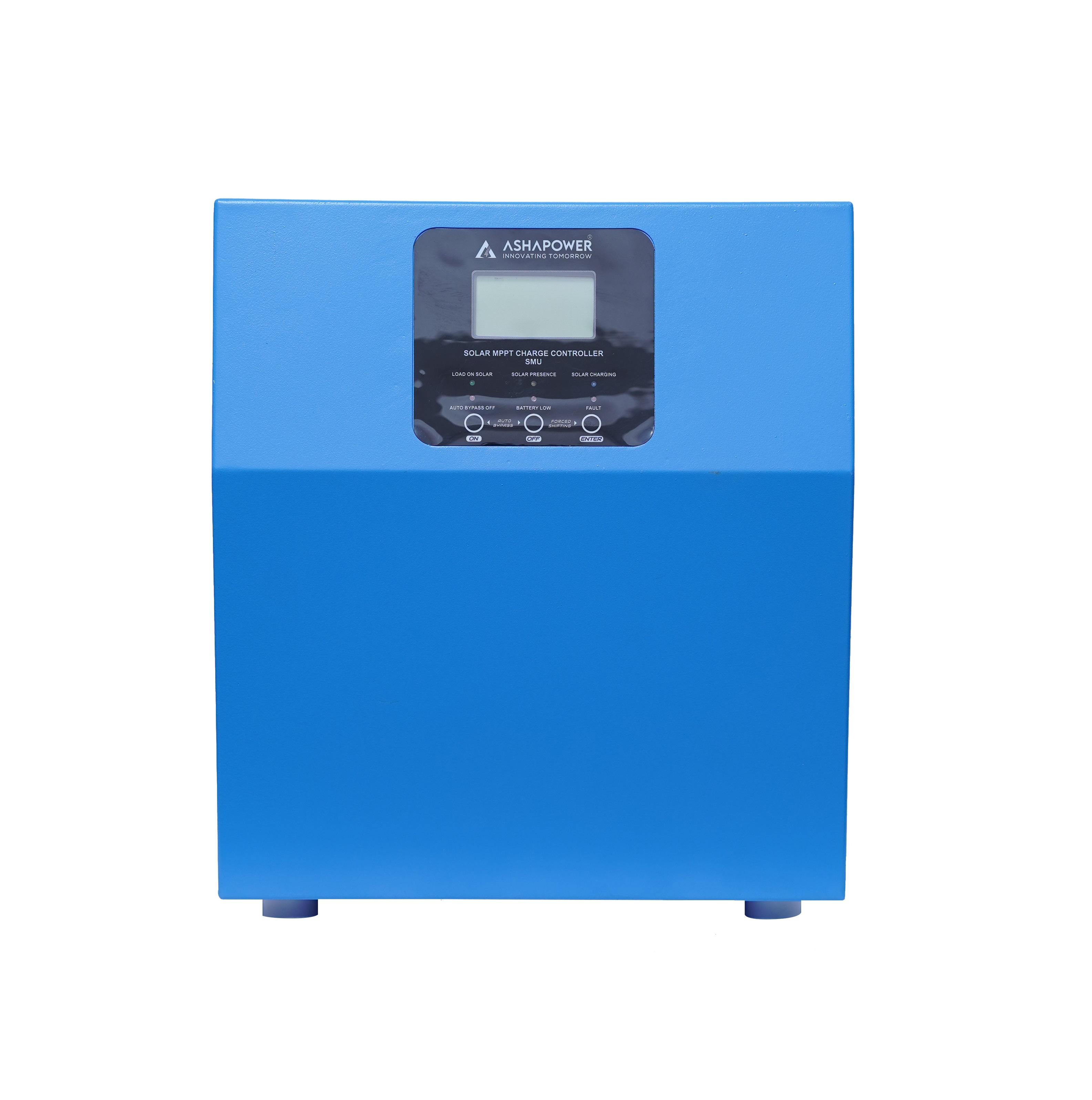

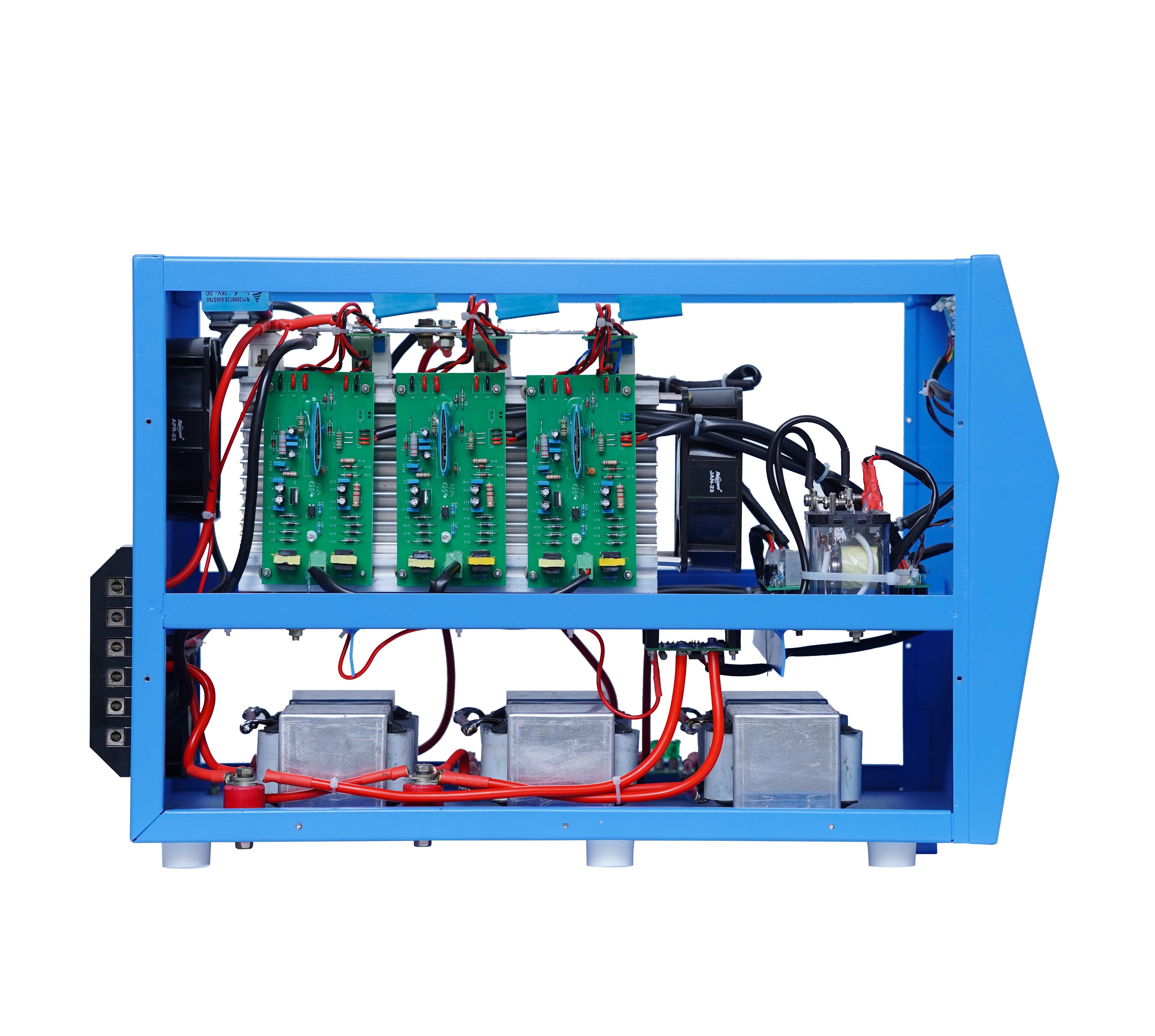

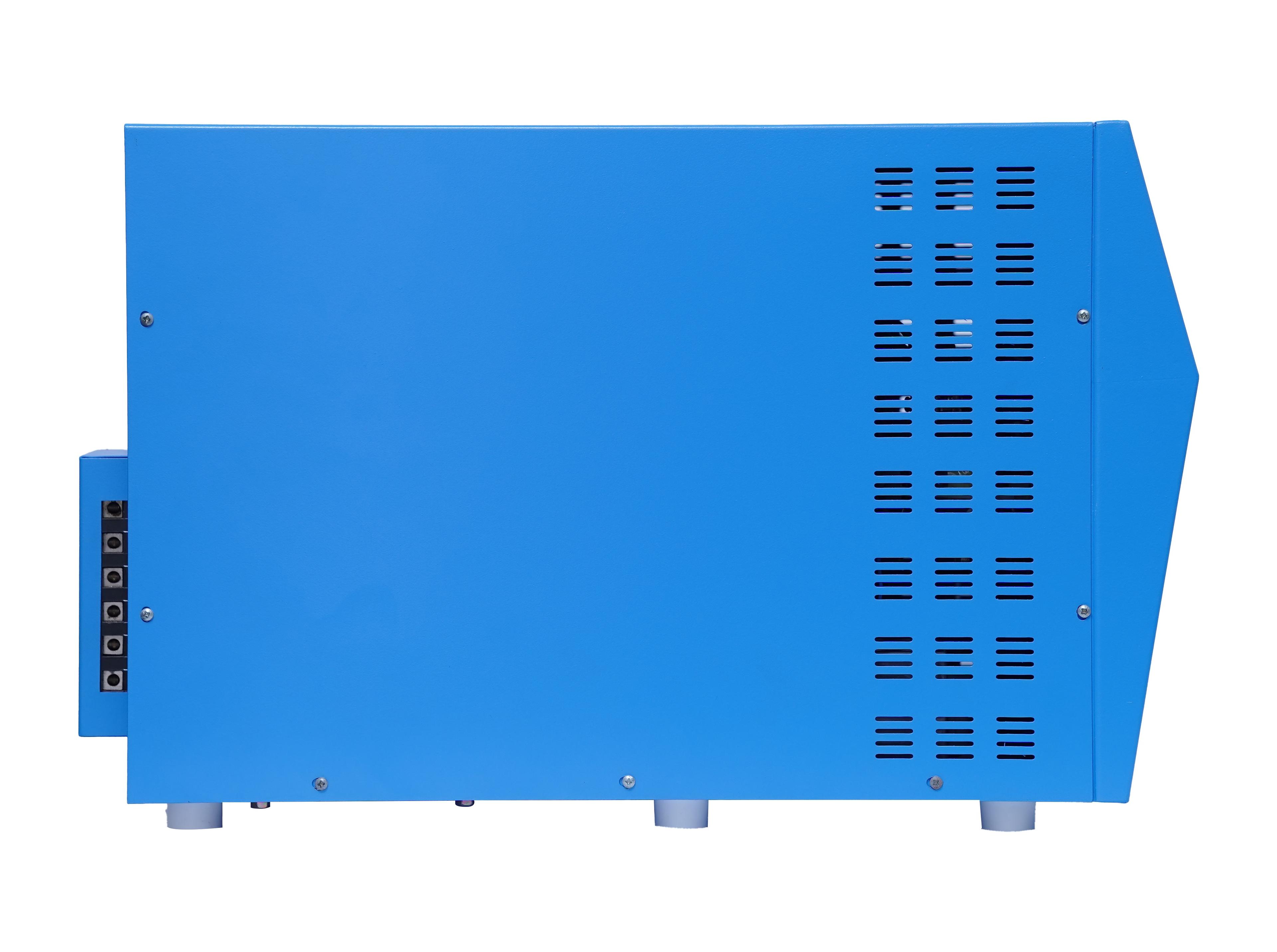

This 144V - 50A IGBT Based Solar MPPT Charge Controller is a heavy duty device for Home/Industrial application. This MPPT based Solar Management Unit(SMU) is custom made as per your requirement where you can connect more no. of solar panels in series for off-grid projects ranging up to 11000 Watts. The 520V Voc helps you connect an existing solar plant with more modules in series without changing the PV panel grouping!!!

Key Features

• High Voc and PV Panel Input Capacity.
• IGBT Based Heavy Duty Hardware.
• 4 stage smart charging for prolonged battery life (Bulk - Absorption - Float - Equalization).
• Programmable Initial limited ampere battery charging facility.
• dsPIC33EP family micro controller based devices.
• PV panel reverse polarity protection.

Specifications
